| FISHING
BOAT |

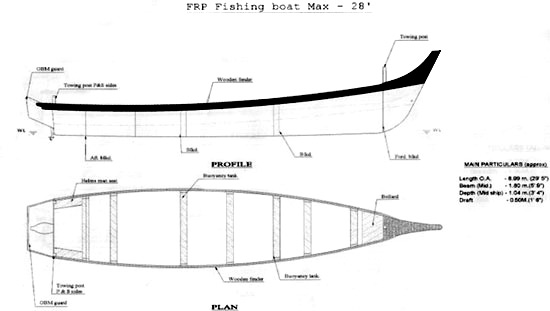

Model
:28 FOOTER
 |
| Specifications |
| Length |
8.99 m
(29 1/2") |
| Breadth |
1.80 m (5.9") |
| Depth |
1.04 m (3.4") |
| Draft |
0.48 m (1.6") |
| Capacity |
2 Ton |
| Approx.
weight |
640 kg |
| Application |
Gillnet fishing,
carrier boat, general work etc. |
| Engine |
Twin 8/15 HP OBM
or 1No OBM |
|
|
|
|
|
|
|
|
| FISHING
BOAT |
Model
: 32 FOOTER
|
| Specifications |
| Length |
9.75 m
(3' 7") |
| Breadth |
1.92 m (6' 3") |
| Depth |
1.07 m(3' 6") |
| Draft |
0.61 m(2') |
| Engine |
Mahindra 45 HP 4
cylinder marinized engine coupled with 1:1
ratio DA5 G Box or suitable for mounting
twin 25/40 HP OBM. |
| SpeedFuel
tank |
8.9 knots in calm
waters.100 liter
capacity for Inboard engine only. |
|
|
| Application |
Gillnet fishing,
long line fishing, carrier boat purpose. |
|
|
|
|
|
|
|
|
|
| |
| FISHING
BOAT |
Model
: 43 FOOTER
|
| Specifications |
| Length |
13.10
m (43') |
| Breadth |
2.43 m (8') |
| Depth |
1.4 m (4' 6") |
| Draft |
1.2 m (3' 11") |
| Engine |
65-80 HP Diesel |
| Speed |
10-12 knots in
clam waters. |
| PUF
insulated fish hold |
optional |
| Fresh
water tank |
450 ltrs. |
| Fuel
tank |
450 X 2=900 liters
cap. |
|
|
|
|
|
|
|
| |
| FISHING
BOAT |
Model
: 66 FOOTER
 |
| Specifications |
| Length |
20 m
(66') |
| Breadth |
3.35 m (11') |
| Depth |
1.82 m (6') |
| Draft |
1.2 m (3' 11") |
| Engine |
108-150 HP Diesel |
| Speed |
10-13 knots in
clam waters |
|
|
|
|
|
| |
| |
| |
|
